Network Generator

ndtools.network_generator creates synthetic network datasets (nodes, edges, probabilities) that conform to this repo’s schemas.

Quick Start (Windows cmd)

You can call the generator from ndtools:

from pathlib import Path
from ndtools.network_generator import GenConfig, generate_and_save

cfg = GenConfig(
    name="ws_n60_k6_b015",
    generator="ws",
    description="WS n=60 k=6 beta=0.15",
    generator_params={"n_nodes": 60, "k": 6, "p_ws": 0.15, "p_fail": 0.1},
    seed=7,
)
repo_root = Path(__file__).resolve().parents[1]
out_base = repo_root / "generated"

ds_root = generate_and_save(out_base, cfg, draw_graph=True)
print("Wrote:", ds_root)

Available Network Types

Overview

Comparison of supported network models
Network type	Generative principle	Key structural feature	Typical real-world interpretation
Grid	Regular lattice	Uniform degree	Planned grid-layout road networks
Erdős–Rényi (ER)	Random edge formation	Homogeneous degree distribution	Purely random connectivity
Watts–Strogatz (WS)	Local lattice with random rewiring	High clustering, short paths	Small-world networks (e.g. social or collaboration networks)
Random geometric	Spatial proximity	Spatial clustering	Physical infrastructure networks constrained by distance (e.g. roads, pipelines, power distribution)
Configuration graph	Fixed number of connections per node	Non-uniform number of connections across nodes	Networks preserving observed node connectivities while randomising links
Barabási–Albert (BA)	Growth with preferential attachment	Scale-free degree distribution with hubs	Hub-based networks formed by growth (e.g. airline, internet, service networks)

Example networks are illustrated below:

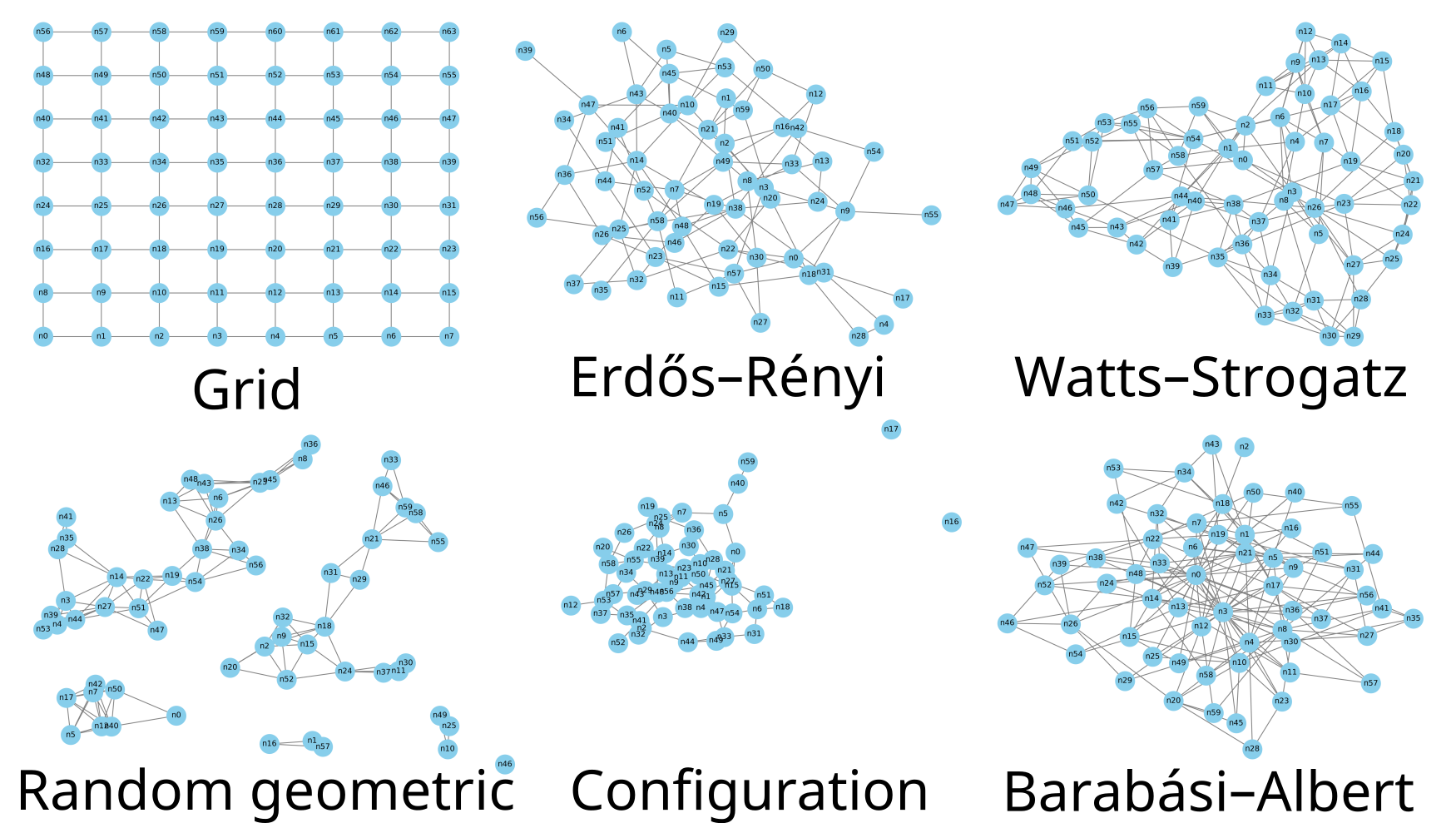

Example generated networks — *Figure 2.* Example networks generated by the random network generator.

where the models are generated with parameters:

Grid (8×8),
Erdős–Rényi (n=60, p=0.05),
Watts–Strogatz (n=60, k=6, β=0.15),
Random Geometric (n=60, r=0.17),
Configuration model (n=60, avg_deg=3),
Barabási–Albert (n=60, m=3).

Notes on Edge Counts

ER: expected edges \(E \approx p \cdot \frac{n(n-1)}{2}\).
WS: edges fixed by k: \(E = \frac{n k}{2}\) (β changes structure, not count).
BA: edges fixed by m: \(E = m n - \frac{m(m+1)}{2}\).
RG: edges grow roughly with \(r^2\); tune --radius (e.g., 0.17 for ~150 edges at n=60).
Config: edges follow the synthesized degree sequence; avg_deg ≈ 2E/n.

Network generator parameters

The high-level entry point is generate_and_save(out_base, config, ...), which (i) generates a network, (ii) assigns edge failure probabilities, (iii) saves the dataset, (iv) optionally validates schema, visualises the graph, and updates the registry.

Common (applies to all generators)

These parameters are read from config and affect all network types.

out_base (Path): Output base directory. The dataset is saved under this path.
config.generator (str): Generator type. Supported values: grid|lattice|erdos_renyi|er|watts_strogatz|ws|barabasi_albert|ba|configuration|config|random_geometric|rg.
config.name (str): Dataset name (used for the dataset folder).
config.version (str): Dataset version label used in the output path.
config.description (str): Human-readable description written to metadata/README.
config.seed (int): Random seed for reproducibility (used by all generators except grid / lattice).
config.generator_params (dict): Dictionary of generator parameters (see “Generator-specific parameters” below).
p_fail (float; inside config.generator_params): Edge failure probability used by assign_edge_probs. Survival probability is 1 - p_fail. If omitted, defaults to 0.1.

Generator-specific parameters

These live inside config.generator_params and depend on config.generator.

Grid / Lattice (`grid` or `lattice`)

rows (int): Number of grid rows.
cols (int): Number of grid columns.

Example usage:

from pathlib import Path
from ndtools.network_generator import GenConfig, generate_and_save

cfg = ng.GenConfig(
    name="grid_4x3",
    generator="grid",
    description="test grid",
    generator_params={"rows": 4, "cols": 3, "p_fail": 0.1},
    seed=None, # grid is deterministic
)
repo_root = Path(__file__).resolve().parents[1]
out_base = repo_root / "generated"

ds_root = generate_and_save(out_base, cfg, draw_graph=True)
print("Wrote:", ds_root)

Erdős–Rényi (`erdos_renyi` or `er`)

n_nodes (int): Number of nodes.
p (float): Edge probability.

Example usage:

from pathlib import Path
from ndtools.network_generator import GenConfig, generate_and_save

cfg = ng.GenConfig(
    name="er_n20_p03",
    generator="er",
    description="test er",
    generator_params={"n_nodes": 20, "p": 0.3, "p_fail": 0.1},
    seed=7,
)
repo_root = Path(__file__).resolve().parents[1]
out_base = repo_root / "generated"

ds_root = generate_and_save(out_base, cfg, draw_graph=True)
print("Wrote:", ds_root)

Watts–Strogatz (`watts_strogatz` or `ws`)

n_nodes (int): Number of nodes.
k (int): Each node is connected to k nearest neighbours in ring topology (typically even).
p_ws (float): Rewiring probability (β). Internally mapped to p_rewire for the underlying generator function.

Example usage:

from pathlib import Path
from ndtools.network_generator import GenConfig, generate_and_save

cfg = ng.GenConfig(
    name="ws_n60_k6_b015",
    generator="ws",
    description="test ws",
    generator_params={"n_nodes": 60, "k": 6, "p_ws": 0.15, "p_fail": 0.1},
    seed=7,
)
repo_root = Path(__file__).resolve().parents[1]
out_base = repo_root / "generated"

ds_root = generate_and_save(out_base, cfg, draw_graph=True)
print("Wrote:", ds_root)

Barabási–Albert (`barabasi_albert` or `ba`)

n_nodes (int): Number of nodes.
m (int): Number of edges to attach from each new node to existing nodes.

Example usage:

from pathlib import Path
from ndtools.network_generator import GenConfig, generate_and_save

cfg = ng.GenConfig(
    name="ba_n60_m3",
    generator="ba",
    description="test ba",
    generator_params={"n_nodes": 60, "m": 3, "p_fail": 0.1},
    seed=7,
)
repo_root = Path(__file__).resolve().parents[1]
out_base = repo_root / "generated"

ds_root = generate_and_save(out_base, cfg, draw_graph=True)
print("Wrote:", ds_root)

Configuration model (`configuration` or `config`)

n_nodes (int): Number of nodes.
avg_deg (float): Target average degree.

Example usage:

from pathlib import Path
from ndtools.network_generator import GenConfig, generate_and_save

cfg = ng.GenConfig(
    name="config_n60_deg3p2",
    generator="config",
    description="test config",
    generator_params={"n_nodes": 60, "avg_deg": 3.2, "p_fail": 0.1},
    seed=7,
)
repo_root = Path(__file__).resolve().parents[1]
out_base = repo_root / "generated"

ds_root = generate_and_save(out_base, cfg, draw_graph=True)
print("Wrote:", ds_root)

Random Geometric (`random_geometric` or `rg`)

n_nodes (int): Number of nodes.
radius (float): Connection radius (typically in [0, 1] depending on your implementation).

Example usage:

from pathlib import Path
from ndtools.network_generator import GenConfig, generate_and_save

cfg = ng.GenConfig(
    name="rg_n60_r017",
    generator="rg",
    description="test rg",
    generator_params={"n_nodes": 60, "radius": 0.17, "p_fail": 0.1},
    seed=7,
)
repo_root = Path(__file__).resolve().parents[1]
out_base = repo_root / "generated"

ds_root = generate_and_save(out_base, cfg, draw_graph=True)
print("Wrote:", ds_root)

Pipeline options (not network-specific)

These are keyword arguments to generate_and_save that affect saving/validation/visualisation, not the graph topology itself.

update_registry_flag (bool, default False): If True, update registry.json at the repository root with the new dataset entry.

Visualisation options

draw_graph (bool, default True): If True, attempt to render a graph image from saved data.
graph_layout (str, default "spring"): Layout name passed to the drawing function.
graph_name (str, default "graph.png"): Output image filename.
graph_kwargs (dict or None): Extra keyword arguments forwarded to the drawing function.

Schema validation

schema_dir (Path or None): If provided, validate the generated dataset against the schema in this directory.

Generated Datasets

Data Structure

Example generated datasets are available under:

generated/<name>/v1/
  data/
    nodes.json
    edges.json
    probs.json
  README.md
  metadata.json

File Details

nodes.json (dict)

{"n0": {"x": <float|null>, "y": <float|null>}, ...}

Grid assigns integer lattice coordinates (x = i % cols, y = i // cols).
ER / WS / BA / Config set x,y to null (no embedded coordinates).
RG sets positions from the unit-square coordinates used to build the graph.

edges.json (dict)

{"e0": {"from": "n0", "to": "n1", "directed": false}, ...}

probs.json (dict)

Binary edge state probabilities (failure/survival) per edge id:

{
  "e0": {"0": {"p": 0.1}, "1": {"p": 0.9}},
  ...
}


A preview figure rendered by ndtools.graphs.draw_graph_from_data(). If nodes have numeric x,y (e.g., RG, Grid), those are used; otherwise a layout is computed.

Acknowledgments

The network generator extensions were drafted by Alex Sixie Cao.
